Volkswagen 02A
- Helical cut gears
- Dog engagement
- 6-speed end cover

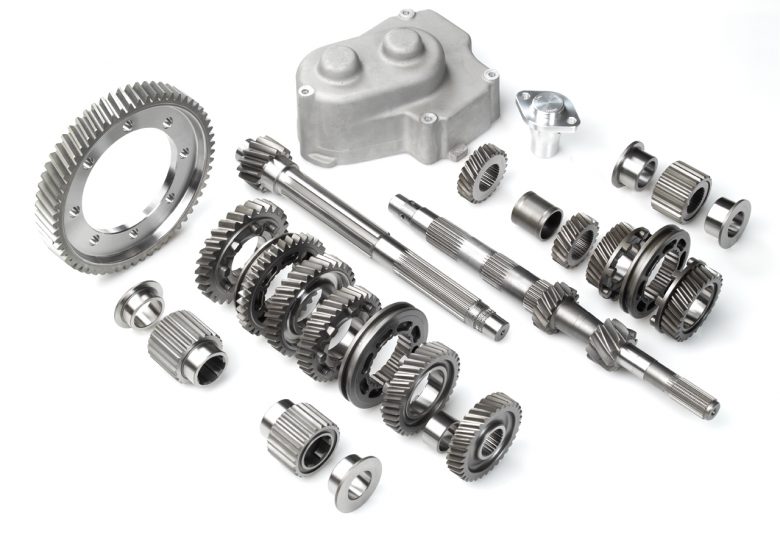

Volkswagen 02A 4, 5 & 6-Speed Gearkit
The Volkswagen 02A gearkit is a complete dog engaged helical cut gearkit available as 4, 5 & 6-speed. Both the 4 & 5-speed kit are designed to fit in the OEM gearbox housings, the 6-speed requires an end cover, which is included in the kit. Due to a variety of ratios, this gearkit can be used in several categories of motorsport. Optionally, the OEM differential can be replaced by a Drenth Gearboxes Limited Slip Differential.
- Mechanical plate type Limited Slip Differential
Gear Ratio Chart
| Layshaft Ratios | Gear Ratios | Final Drive Ratios | ||||
|---|---|---|---|---|---|---|
| 1st | 2nd | 3rd | 4th | 5th | 6th | |
| 3.000 | 2.267 | 1.833 | 1.550 | 1.333 | 1.214 | 4.615 |
| 2.900 | 2.267 | 1.800 | 1.458 | 1.273 | 1.130 | 4.462 |
| 2.583 1 | 2.143 1 | 1.214 | 1.036 | 4.214 | ||
| 3.867 | ||||||
| 3.563 | ||||||
