Gearkits
Toyota Yaris GR 6-Speed
- 600Nm maximum input torque
- Straight cut gears
- Dog engagement
- New main selector system

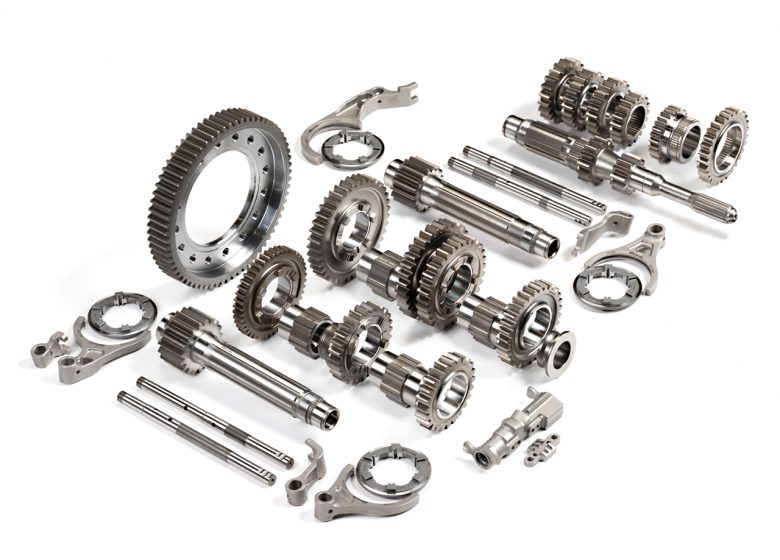

Toyota Yaris GR 6-Speed Gearkit
The Toyota Yaris gearkit is a complete dog engaged straight-cut gearkit including new selector shaft/fork design. Designed to fit the OEM gearbox casings, no adjustments required. Gearset can handle up to 600Nm of torque and can be used in several categories of motorsport. The new main selector system results in effective and precisely shifting with respect to the OEM design.
Current gear ratios are limited, but will be expanded in the future by Drenth or customer requests.
- Front & Rear Mechanical plate type Limited Slip Differential
Gear Ratio Chart
| Layshaft Ratios | Gear Ratios | Final Drive Ratios | |||||
|---|---|---|---|---|---|---|---|
| 1st | 2nd | 3rd | 4th | 5th | 6th | 1st / 4th | 5th / 6th |
| 3.000 | 2.200 | 1.684 | 1.348 | 1.217 | 1.091 | 3.941 | 3.526 |
| 1.154 | 1.000 | 3.722 | 3.526 | ||||
