4WD transverse gearboxes
Toyota Yaris GR 6-Speed Sequential
- 600 Nm maximum input torque
- Gearbox weight 58,5 kg
- Straight cut gears
- Sequential dog engagement
- Oilpump with spray bar

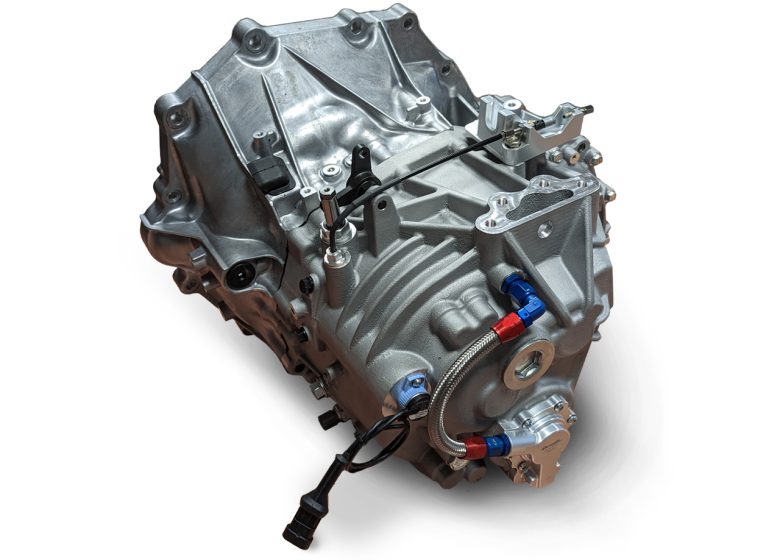

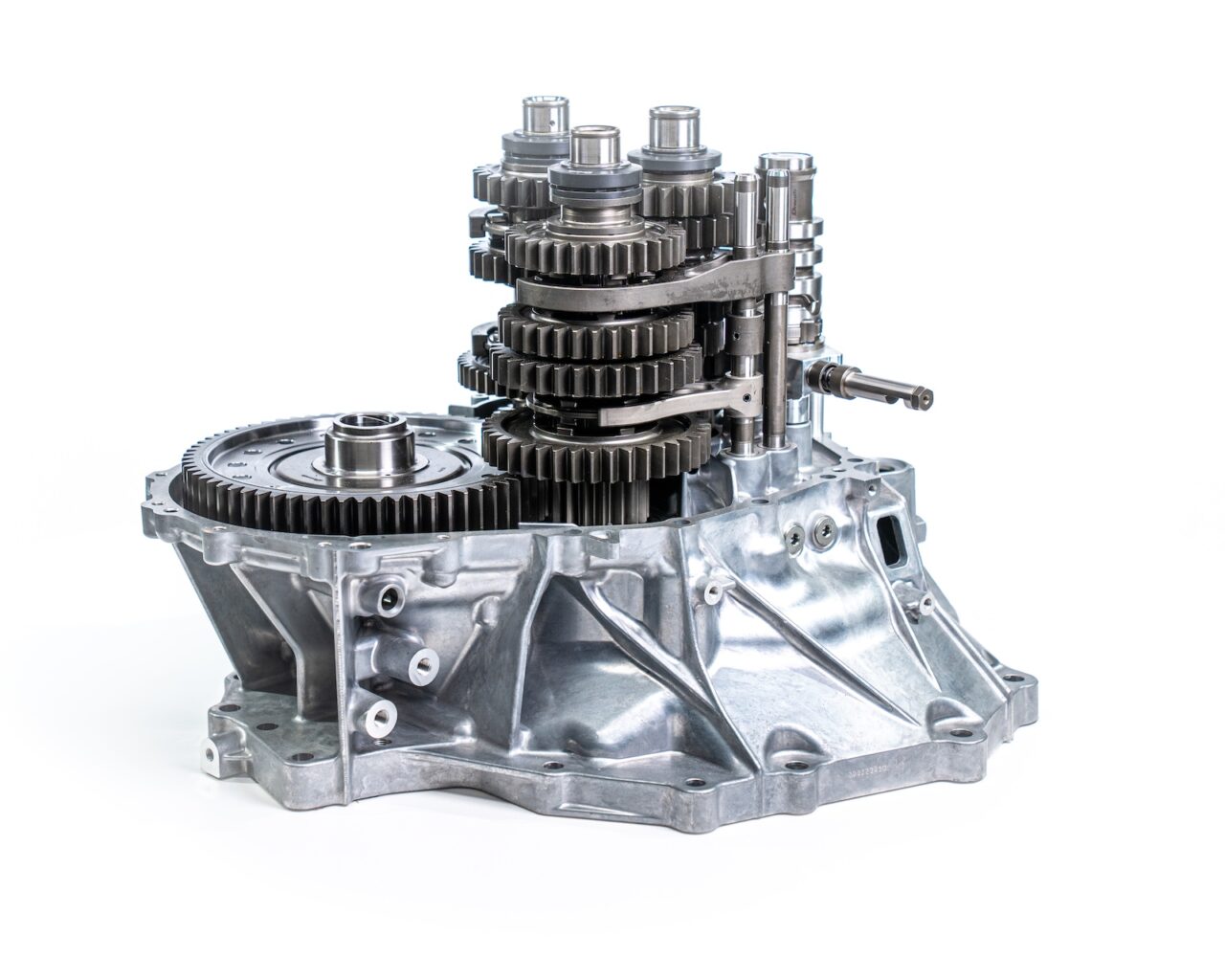

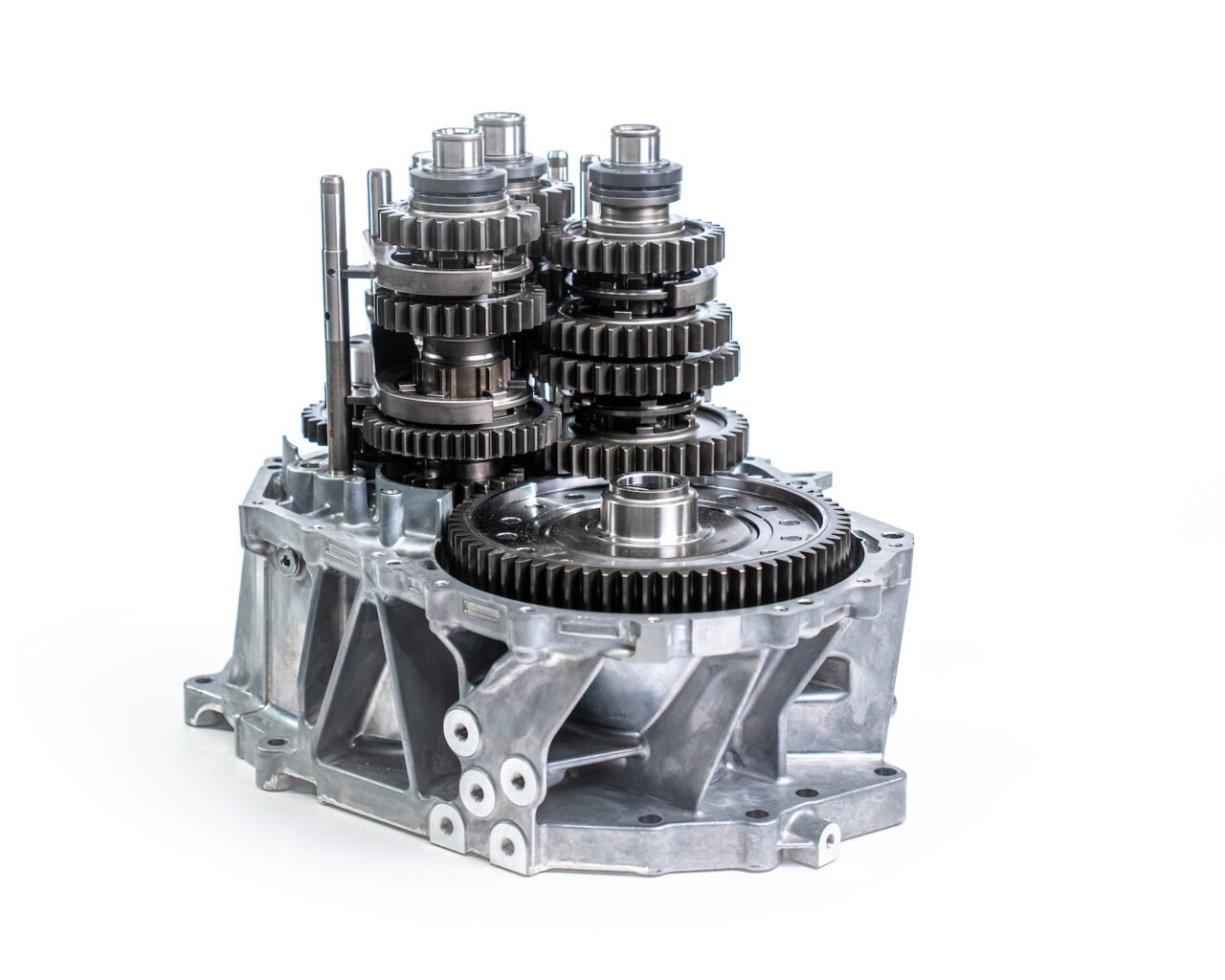

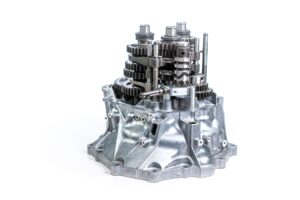

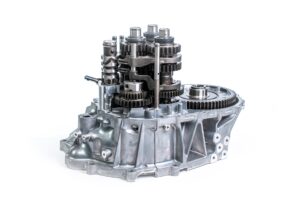

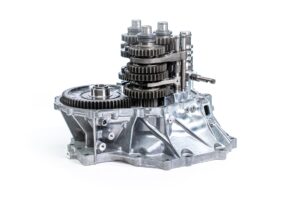

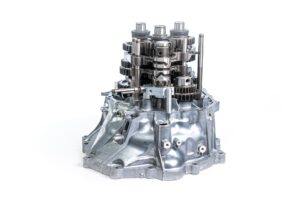

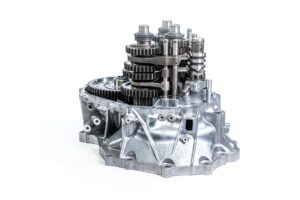

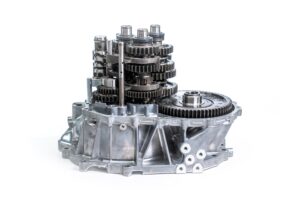

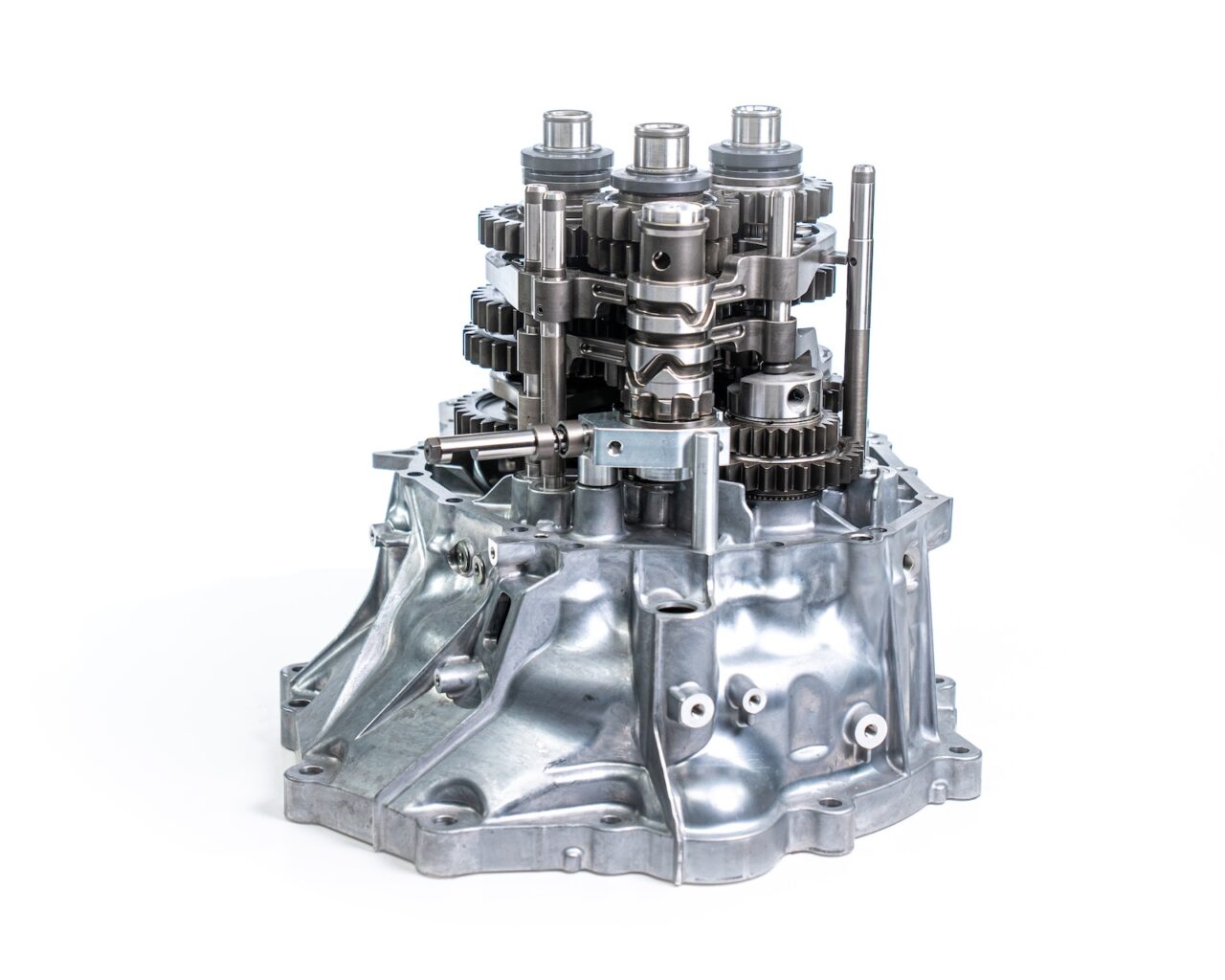

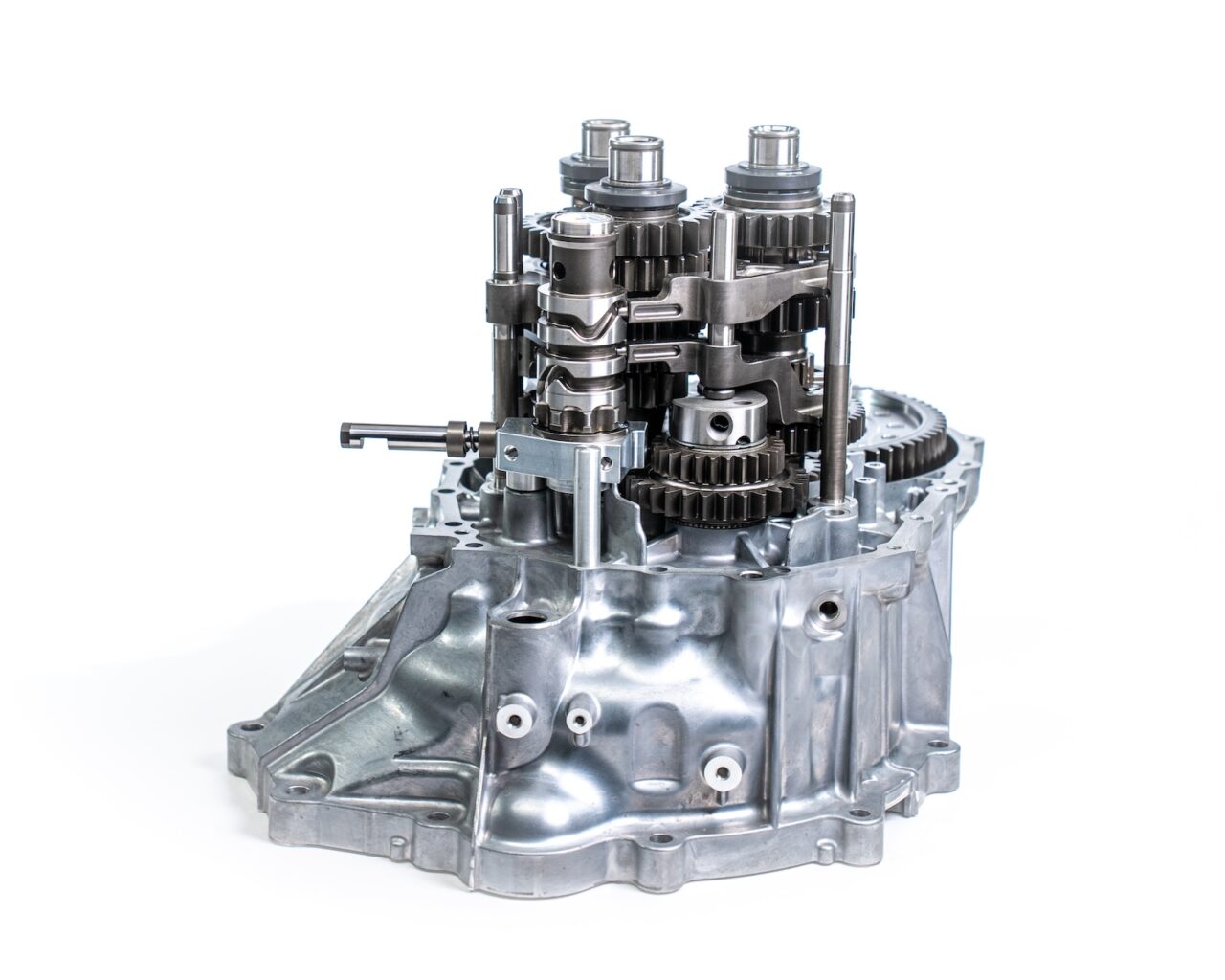

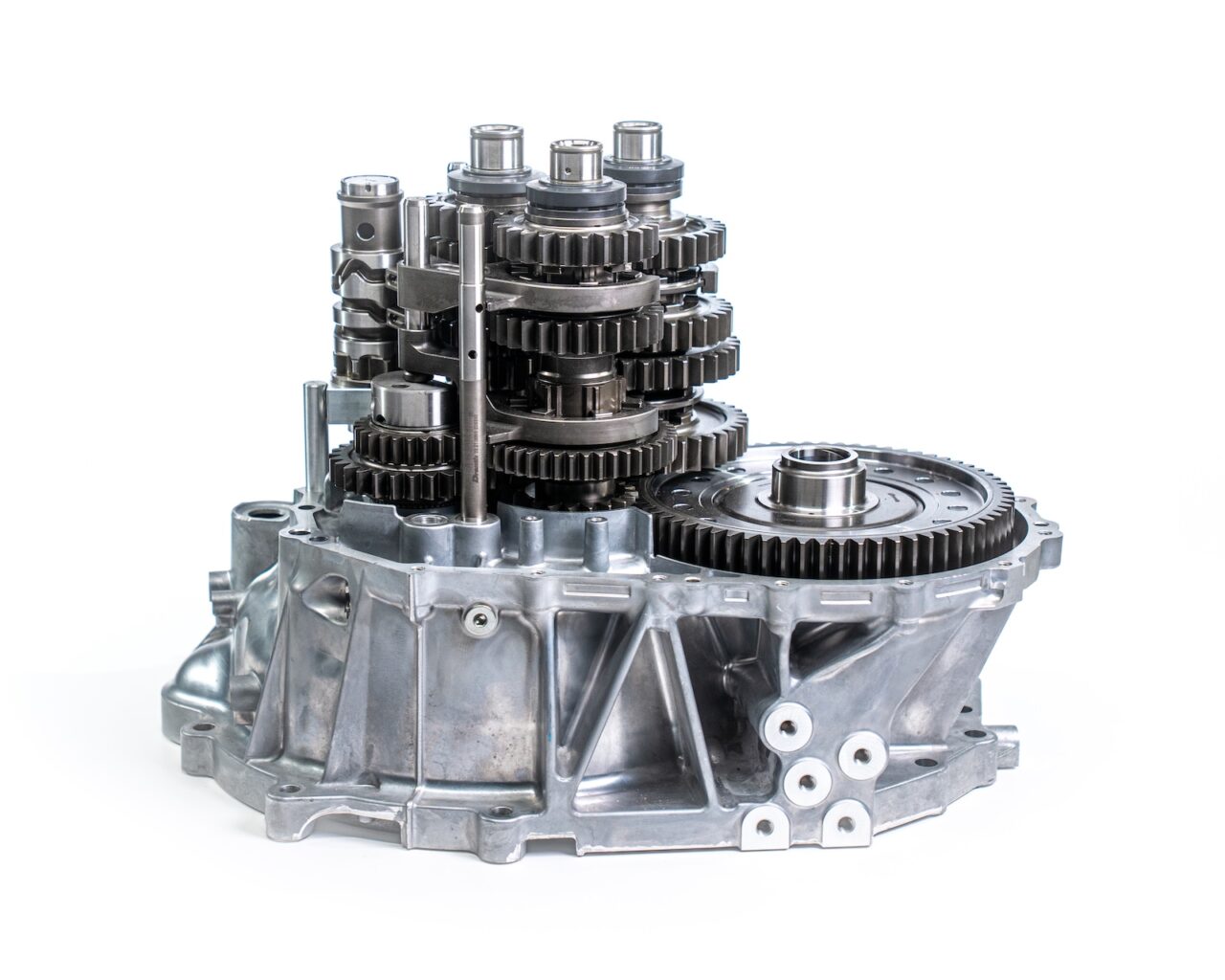

Toyota Yaris GR 6-Speed Sequential Gearbox

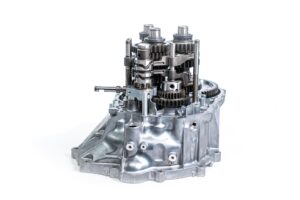

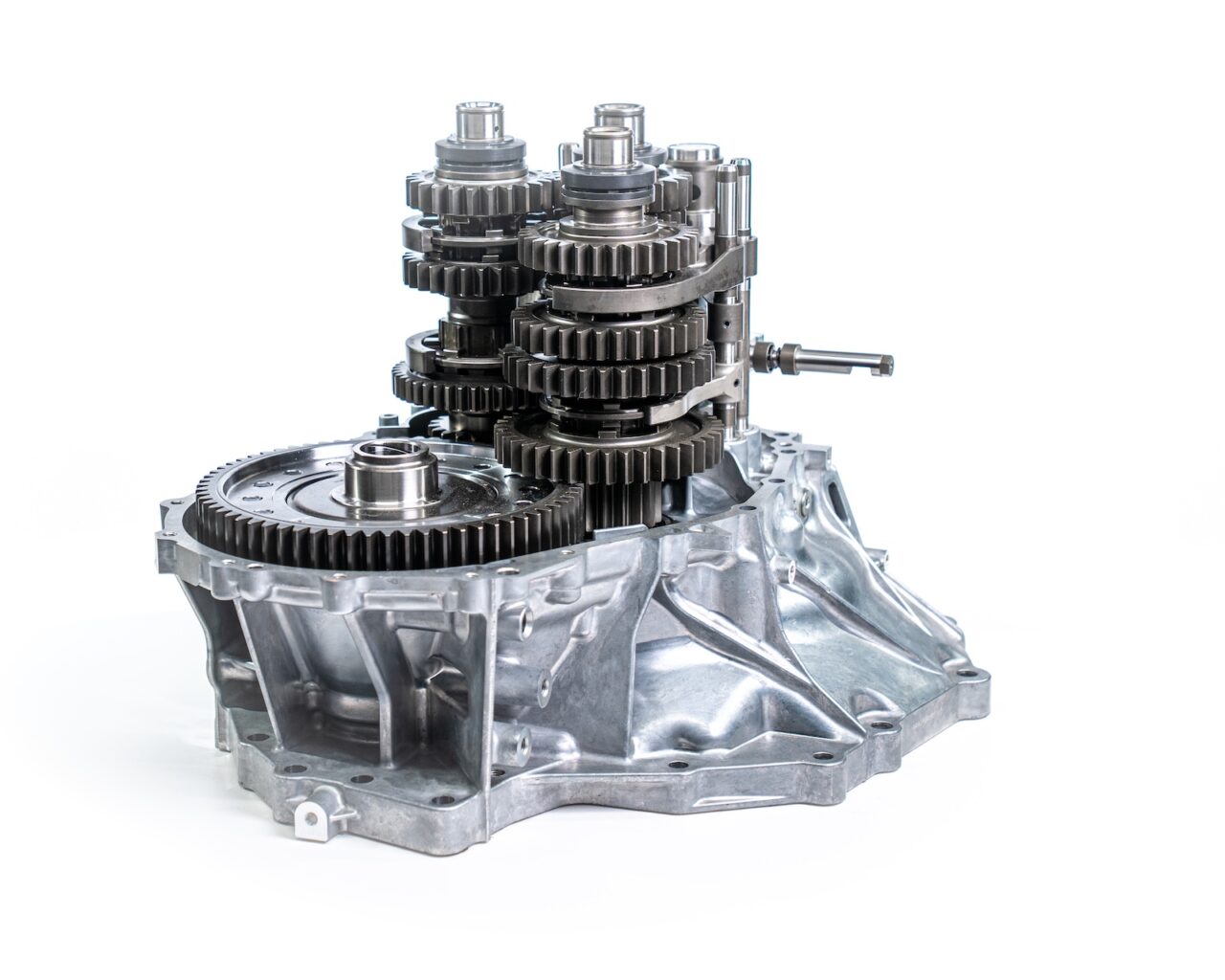

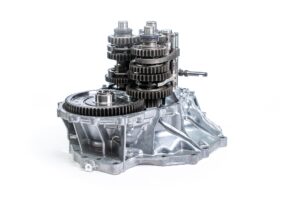

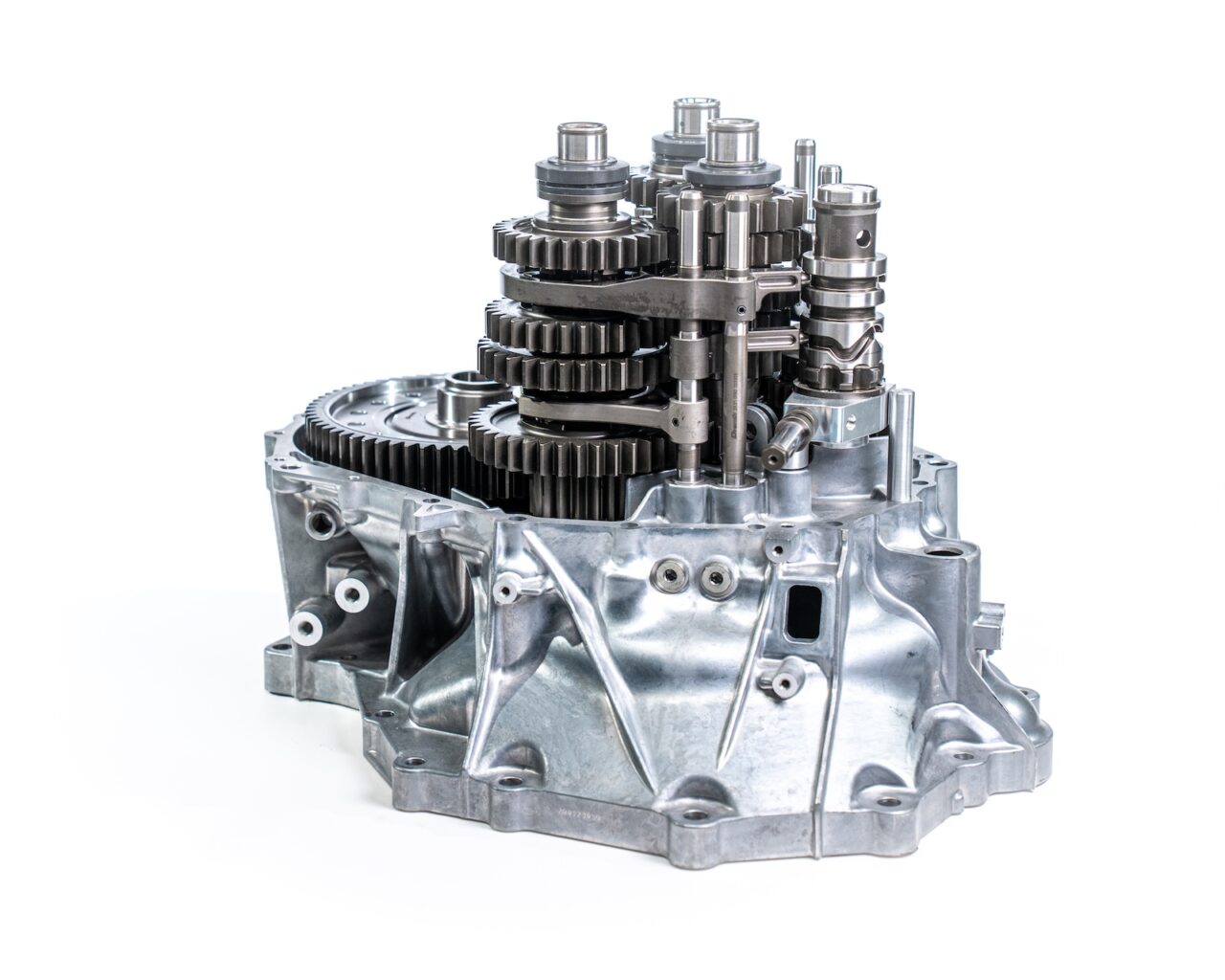

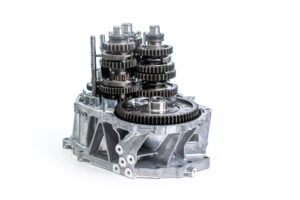

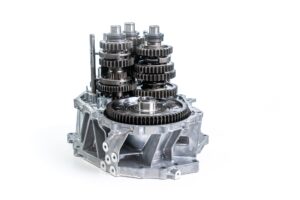

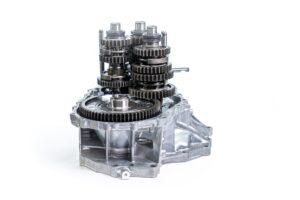

The Toyota Yaris GR 6-speed sequential is the latest development of Drenth Gearboxes. This 6-speed sequential version is capable of handling up to 600Nm of torque and can be used in several categories of motorsport. As with the other Drenth sequential gearboxes, this gearbox uses the OEM Bellhouse in combination with a Drenth replacement gearbox housing. Gearbox standard features a Drenth Limited Slip Differential.
- Push / Pull cable
- Manual / DMS Gear Lever
- Gear indicator / Display unit
- Gear lever brackets
- Paddleshift brackets
- Oil breather catch tank
- Mechanical plate type Limited Slip Differential (Front & Rear)
Gear Ratio Chart
| Layshaft Ratios | Gear Ratios | Final Drive Ratios | |||||
|---|---|---|---|---|---|---|---|
| 1st | 2nd | 3rd | 4th | 5th | 6th | 1st/4th | 5th/6th |
| 3.000 | 2.200 | 1.684 | 1.348 | 1.217 | 1.091 | 3.941 | 3.526 |
| 1.154 | 1.000 | 3.722 | 3.526 | ||||
