Mitsubishi EVO X 5-Speed Sequential
- 900 Nm maximum input torque (depending on gear ratios and vehicle weight)
- Gearbox weight 57 kg
- Straight cut gears
- Sequential dog engagement

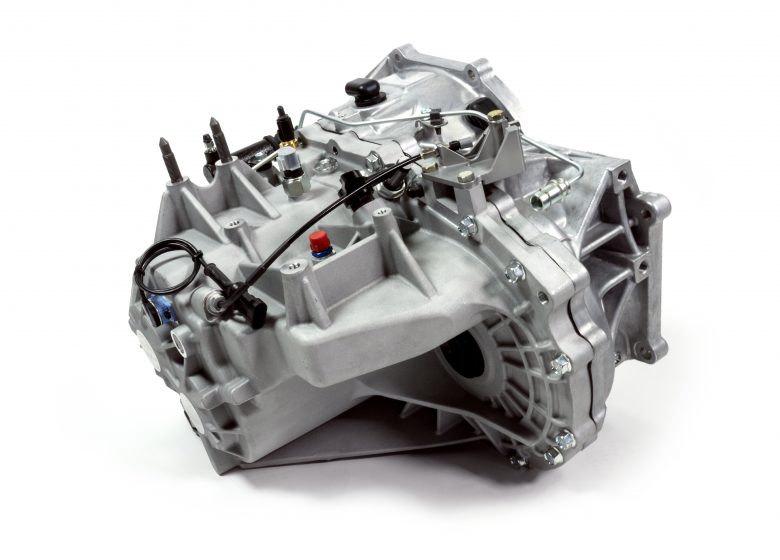

Mitsubishi EVO X 5-Speed Sequential Gearbox
Drenth Gearboxes designed a dog engaged full sequential 5-speed replacement for the Mitsubishi Lancer Evolution X. This gearbox, which is based on the Mitsubishi Lancer Evolution X gearkit, uses the OEM bellhouse in combination with a Drenth replacement gearbox housing. This upgrade in combination with other upgrades, such as the replacement of the tapered differential bearings by bespoke cylindrical roller bearings, ensures that this gearbox is now capable of handling up to 900 Nm of torque.
- Differential roller bearing set
- Push / Pull cable
- Gear lever
- DMS gear lever
- Gear indicator
- Display unit
- Gear lever brackets
- Paddleshift brackets
- Oil breather catch tank
Gear Ratio Chart
| Layshaft Ratios | Gear Ratios | Final Drive Ratios | ||||
|---|---|---|---|---|---|---|
| 1st | 2nd | 3rd | 3rd | 4th | 5th | |
| 3.000 | 2.000 | 1.556 | 1.368 | 1.211 | 4.538 | |
| 2.692 | 2.000 | 1.611 | 1.471 | 1.316 | 1.167 | 4.308 |
| 1.368 | 1.211 | 1.095 | 4.143 | |||
| 1.167 | 1.000 | 3.929 | ||||
| 1.136 | 0.960 | |||||
| 1.111 | 0.893 | |||||
| 1.000 | 0.889 | |||||
| 0.857 | ||||||
