Mitsubishi EVO VI-IX 5-Speed Gearkit

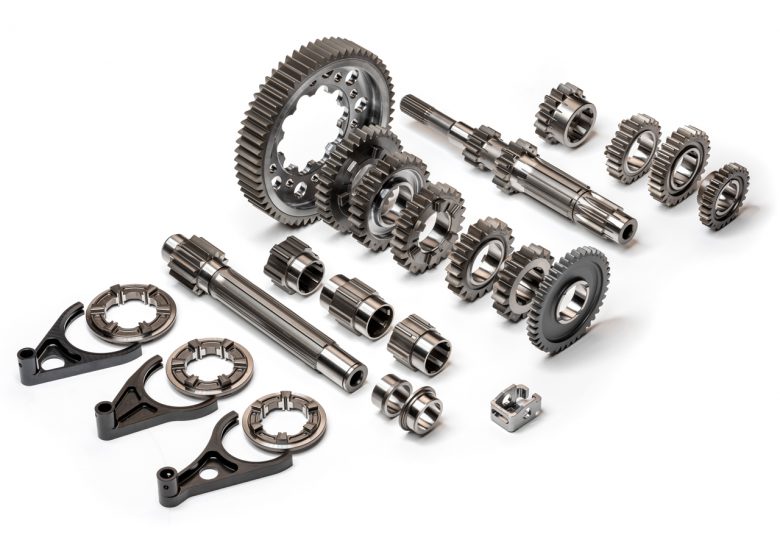

The Mitsubishi Lancer Evolution VI-IX gearkit is a complete dog engaged straight-cut gearkit. Designed to fit in the OEM gearbox housings, this kit, which can handle up to 900 Nm of torque, can be used in several categories of motorsport. A wide range of gear ratios is available including a homologated FIA Group N ratio kit. Optionally, the tapered differential bearings can be replaced by bespoke cylindrical roller bearings.
- A wide range of ratios are available for other applications
- Differential roller bearing set including reinforced differential cover
Homologated FIA Group N Gear Ratios
| Layshaft Ratios | Gear Ratios | Final Drive Ratios |
|---|
| 1st | 2nd | 3rd | 3rd | 4th | 5th | |
| 3.000 | 2.000 | | 1.471 | 1.111 | 0.857 | 4.308 |
Gear Ratio Chart
| Layshaft Ratios | Gear Ratios | Final Drive Ratios |
|---|
| 1st | 2nd | 3rd | 3rd | 4th | 5th | |
| 3.000 | 2.077 | 1.611 | 1.556 | 1.368 | 1.211 | 4.846 |
| 3.000 | 2.077 | | 1.471 | 1.316 | 1.167 | 4.538 |
| 3.000 | 2.000 | 1.611 | 1.368 | 1.211 | 1.095 | 4.308 |
| 3.000 | 2.000 | | | 1.167 | 1.000 | 4.143 |
| 3.000 | 1.923 | | | 1.136 | 0.960 | 3.929 |
| 2.692 | 2.000 | 1.611 | | 1.111 | 0.923 | 3.643 |
| 2.692 | 2.000 | | | 1.000 | 0.889 | 3.444 |
| | | | | 0.857 | 3.429 |
