Mitsubishi EVO VI-IX 5-Speed Sequential

  • 900 Nm maximum input torque (depending on gear ratios and vehicle weight)
  • Gearbox weight 57 kg
  • Straight cut gears
  • Sequential dog engagement
Add to quote

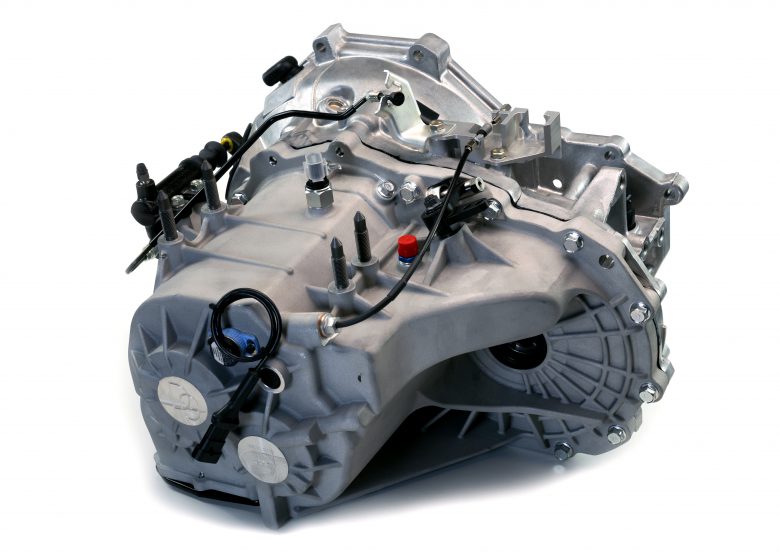

Mitsubishi EVO VI-IX 5-Speed Sequential Gearbox

Drenth Gearboxes designed a dog engaged full sequential 5-speed replacement for the Mitsubishi Lancer Evolution VI-IX. This gearbox, which is based on the Mitsubishi Lancer Evolution VI-IX gearkit, uses the OEM bellhouse in combination with a Drenth replacement gearbox housing. This upgrade in combination with other upgrades, such as the replacement of the tapered differential bearings by bespoke cylindrical roller bearings, ensures that this gearbox is now capable of handling up to 900 Nm of torque.

  • Differential roller bearing set including
reinforced differential cover
  • Push / Pull cable
  • Shifting rod system
  • Gear lever
  • DMS gear lever
  • Gear indicator
  • Display unit
  • Quick release system
  • Gear lever brackets
  • Paddleshift brackets
  • Oil breather catch tank
Gear Ratio Chart
Layshaft RatiosGear RatiosFinal Drive Ratios
1st2nd3rd3rd4th5th
3.0002.0771.6111.5561.3681.2114.864
3.0002.0771.4711.3161.1674.538
3.0002.0001.6111.3681.2111.0954.308
3.0002.0001.1671.0004.143
2.6922.0001.6111.1360.9603.929
2.6922.0001.1110.8893.643
1.0000.8573.444
