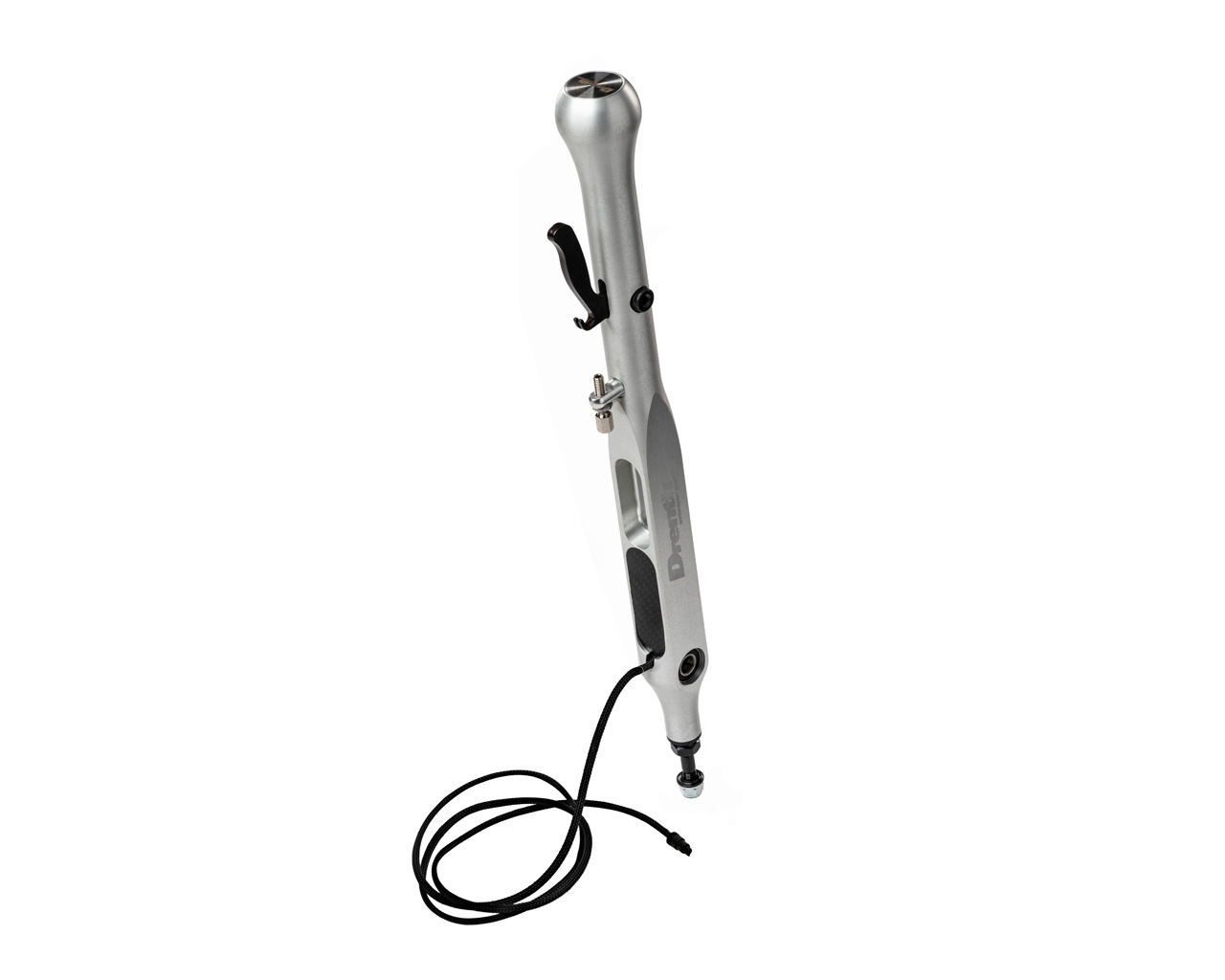

DMS Gear Lever

  • Lightweight aluminium gear lever
  • Analog output signal / digital optional
  • Adjustable stroke length

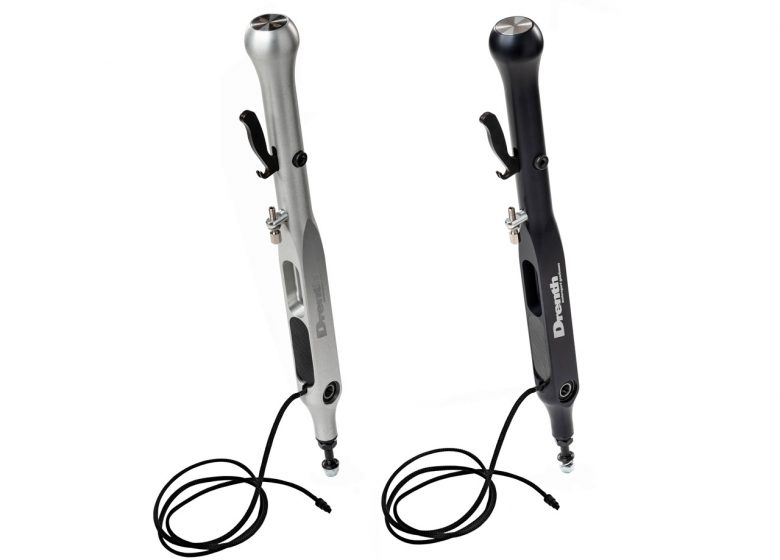

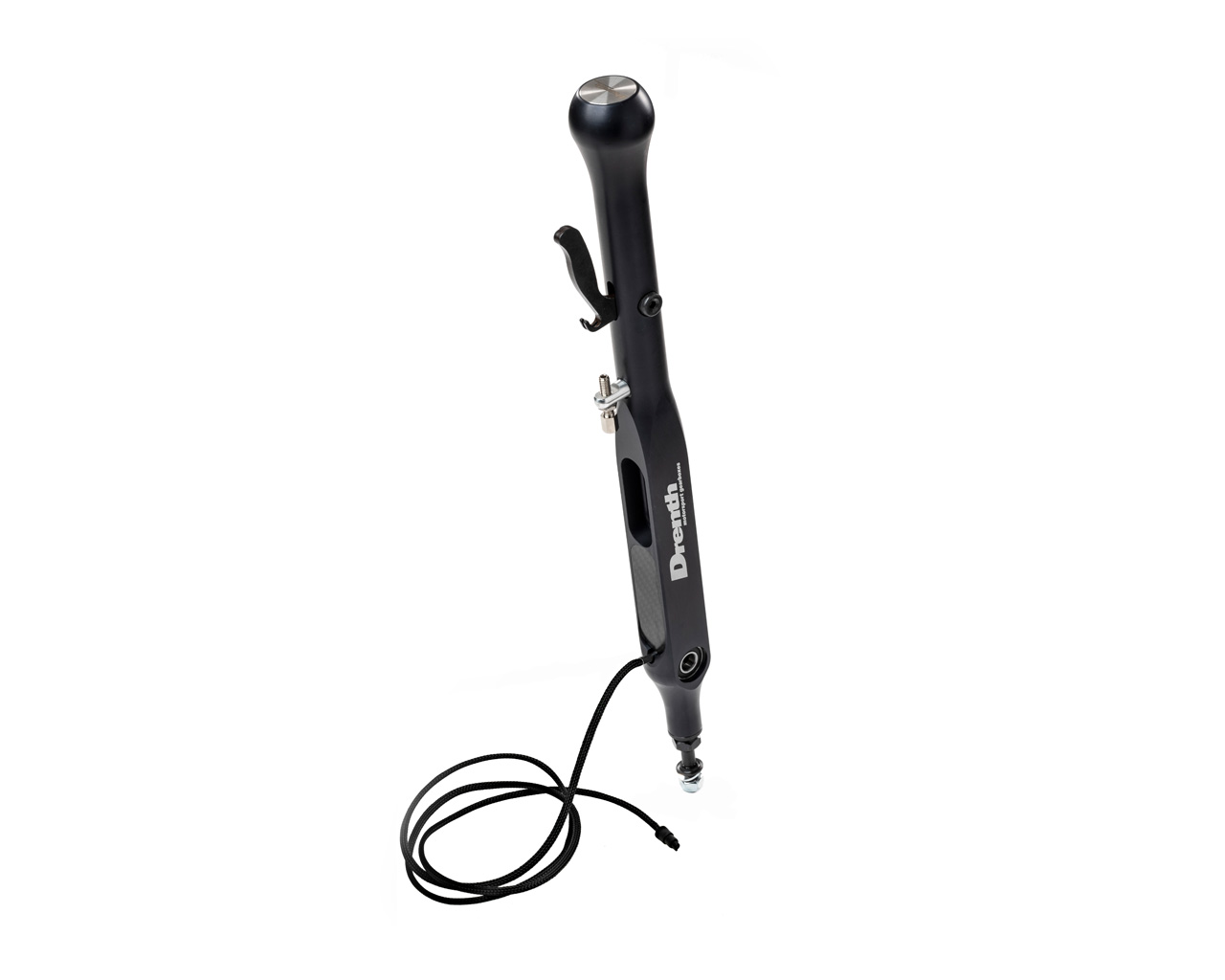

  • Available in clear or black anodized
Add to quote

Drenth Gearboxes offers a one-piece aluminium DMS gear lever with integrated electronics which can be used on all Drenth sequential gearboxes. By using the analogue output signal of the gear lever electronics the ECU can be programmed to cut the ignition which enables flat-shifting. When the ECU requires a digital output signal for programming the ignition cut an optional Switchbox is used to convert the analogue signal. Additionally the DMS gear lever can be used to program down shift throttle blip if the car is equipped with Drive by Wire.

In order to suit a variety of applications, the gear lever comes in two different lengths:
260 mm
360 mm

  • Gear indicator
  • Display unit
  • Switchbox
  • Push / Pull cable
  • Shift rods
  • Quick release system
  • Gear lever brackets
  • Paddleshift brackets
  • Customer specific gear lever
