Transaxle gearboxes
DGT250 5-Speed
- 300 Nm maximum input torque (depending on gear ratios and vehicle weight)
- Gearbox weight 46 kg
- Straight cut gears
- Sequential dog engagement
- Mechanical plate type Limited Slip Differential

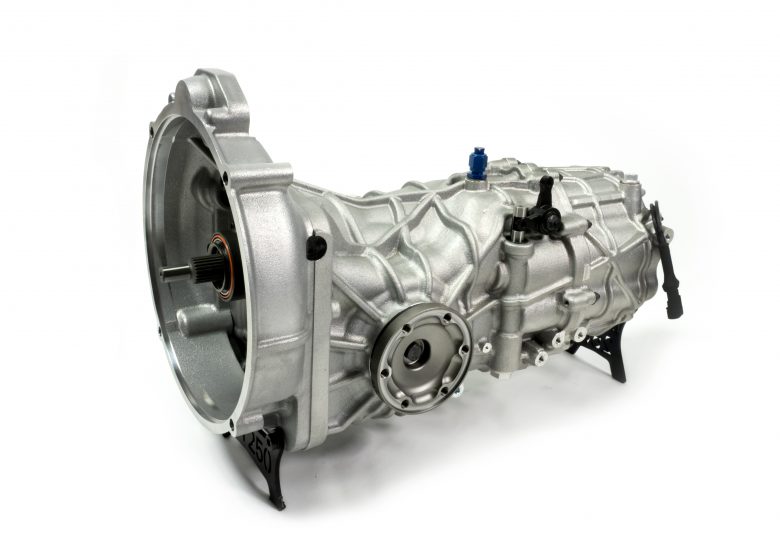

DGT250 5- Speed Sequential Transaxle Gearbox
The DGT250 is the latest addition to the gearbox range of Drenth Gearboxes featuring a plate style Limited Slip Differential with adjustable preload and multiple ramp settings as well as an integral first and second gear with slide on 3rd to 6th. Various mid- and rear-engine configurations are available including 2WD and 4WD.
- Various driveline options
- Mechanical release bearing
- Hydraulic release bearing
- Gear lever
- DMS gear lever
- Gear indicator
- Display unit
- Paddleshift brackets
- Oil breather catch tank
- Customer specific bellhousing
- Customer specific input shaft
Gear Ratio Chart
| Layshaft Ratios 1 | Gear Ratios | Final Drive Ratios | |||
|---|---|---|---|---|---|
| 1st | 2nd | 3rd | 4th | 5th | |
| 3.273 | 2.692 | 2.231 | 1.611 | 1.091 | 4.375 |
| 3.182 | 2.615 | 2.133 | 1.556 | 1.042 | 3.889 |
| 3.091 | 2.583 | 2.067 | 1.474 | 0.889 | |
| 3.091 | 2.462 | 2.063 | 1.412 | 0.857 | |
| 3.000 | 2.538 | 1.933 | 1.350 | 0.828 | |
| 3.000 | 2.462 | 1.875 | 1.300 | ||
| 3.000 | 2.462 | 1.824 | 1.250 | ||
| 2.917 | 2.462 | 1.765 | 1.182 | ||
| 2.833 | 2.357 | 1.722 | 1.136 | ||
| 2.833 | 2.357 | 1.667 | 1.107 | ||
